40 Foot Shipping Container Dimensions Complete Guide

May 18, 2025

Introduce with 40 Foot Shipping Container Dimensions

Shipping containers have become an integral part of global trade and modern construction. The 40 foot shipping container is one of the most commonly used container sizes, valued for its versatility, capacity, and adaptability. Whether you’re exploring container specifications for shipping goods, building container homes, or understanding their role in logistics, this comprehensive guide will cover all the details of 40 foot shipping container dimensions and related information.

Why 40 Foot Shipping Containers Matter
40 Foot Shipping Container Dimensions in Feet
40 Foot High Cube Shipping Container Dimensions
40 Foot Container Dimensions in Metric Units
Internal Dimensions of a 40 Foot Shipping Container
Weight and Capacity of 40 Foot Containers
Understanding 40 Foot Shipping Container Square Footage
External Dimensions of 40 Foot Containers
Specialized Containers: Open-Top and High Cube Designs
40 Foot Shipping Containers in Transportation
FAQs About 40 Foot Shipping Containers
Conclusion: Maximizing the Potential of 40 Foot Containers

1. Why 40 Foot Shipping Containers Matter

The 40 foot shipping container is a cornerstone of the modern logistics and shipping industry. Its standardized size ensures compatibility with global transportation networks, including ships, trucks, and trains. Beyond shipping, these containers are now widely used for innovative purposes, such as container homes, offices, and storage spaces.

Key reasons why 40 foot containers are crucial:

High Capacity: They offer ample space for goods or creative construction projects.
Standardization: Their uniform size simplifies stacking and transportation globally.
Durability: Built from corten steel, these containers withstand harsh conditions.

2. 40 Foot Shipping Container Dimensions in Feet

The standard 40 foot shipping container dimensions in feet are as follows:

External Dimensions:
- Length: 40 feet
- Width: 8 feet
- Height: 8 feet 6 inches
Internal Dimensions:
- Length: 39 feet 5 inches
- Width: 7 feet 9 inches
- Height: 7 feet 10 inches

These dimensions make the 40 foot container ideal for transporting large volumes of goods, offering approximately 2,390 cubic feet of internal space.

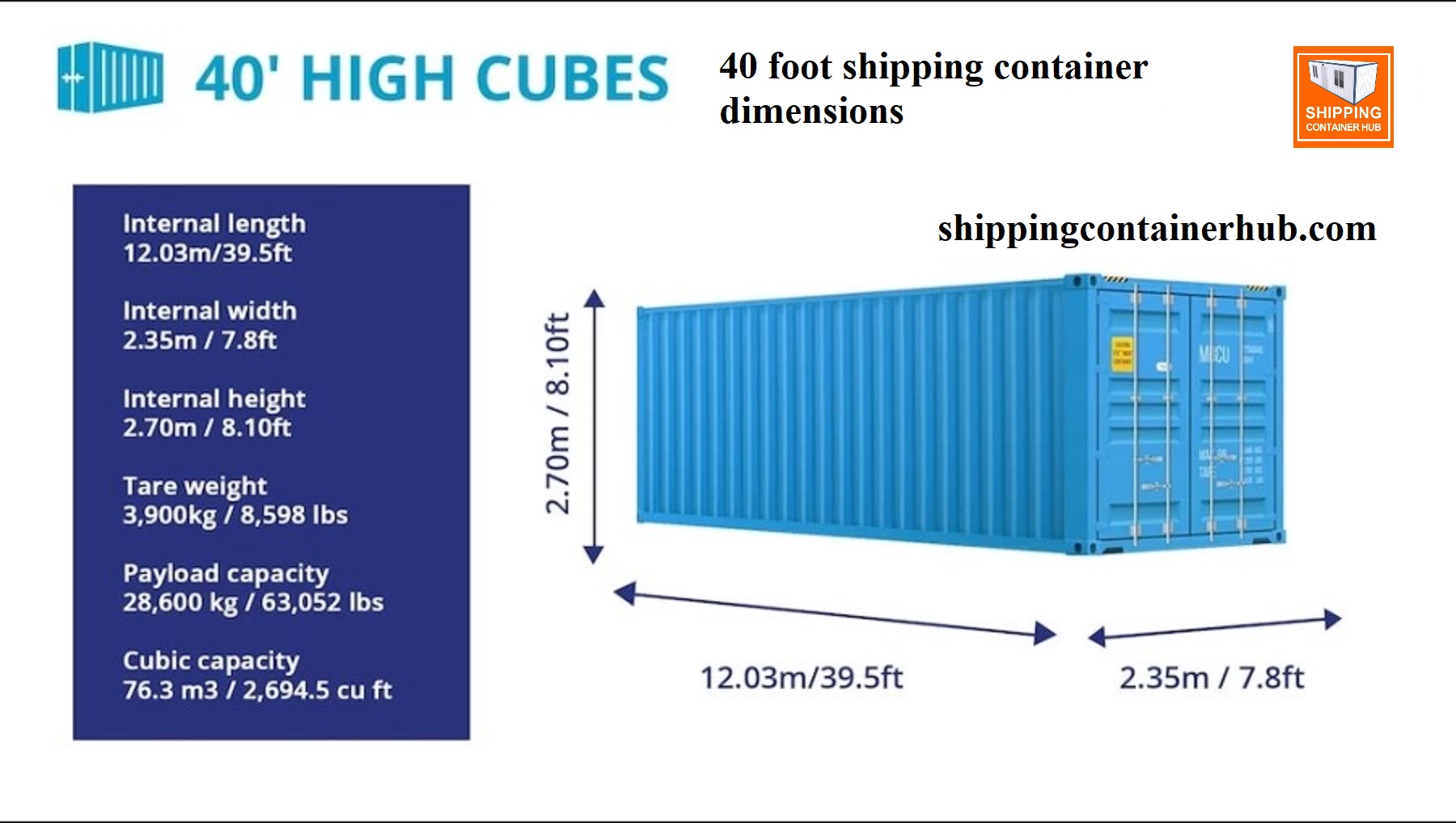

3. 40 Foot High Cube Shipping Container Dimensions

The 40 foot high cube shipping container is a slightly taller version of the standard container, providing extra vertical space.

External Dimensions:
- Length: 40 feet
- Width: 8 feet
- Height: 9 feet 6 inches
Internal Dimensions:
- Length: 39 feet 5 inches
- Width: 7 feet 9 inches
- Height: 8 feet 10 inches

High cube containers are often used for storing or transporting oversized items and are popular in the construction of container homes due to the added headroom.

4. 40 Foot Container Dimensions in Metric Units

For those who prefer measurements in meters, here are the 40 foot container dimensions in meters:

Standard Container:
- External Dimensions: 12.19m (L) x 2.44m (W) x 2.59m (H)
- Internal Dimensions: 12.03m (L) x 2.35m (W) x 2.39m (H)
High Cube Container:
- External Dimensions: 12.19m (L) x 2.44m (W) x 2.90m (H)
- Internal Dimensions: 12.03m (L) x 2.35m (W) x 2.69m (H)

5. Internal Dimensions of a 40-Foot Shipping Container

The internal dimensions of a 40 foot shipping container are critical for determining how much cargo or how many pallets it can hold. For standard models:

Length: 39 feet 5 inches (12.03 meters)
Width: 7 feet 9 inches (2.35 meters)
Height: 7 feet 10 inches (2.39 meters)

This translates to an internal floor area of approximately 304 square feet and a total volume of 2,390 cubic feet (67.7 cubic meters).

6. Weight and Capacity of 40-Foot Containers

Knowing the weight and capacity of a container is essential for shipping and logistics:

Tare Weight (Empty Container): Approximately 8,000–8,775 lbs (3,640–3,980 kg)
Maximum Gross Weight: 67,200 lbs (30,480 kg)
Payload Capacity (Net Load): Around 58,450 lbs (26,500 kg)

This means a 40 foot container can handle a substantial load of cargo while maintaining safety standards.

7. Understanding 40 Foot Shipping Container Square Footage

The square footage of a 40 foot shipping container is another important factor, particularly for construction projects. The internal floor area is approximately:

Standard Container: 304 square feet
High Cube Container: 304 square feet, with additional cubic footage due to the extra height.

This makes 40 foot containers a popular choice for container homes, offices, and other creative spaces.

8. External Dimensions of 40 Foot Containers

The outside dimensions of a 40 foot shipping container remain consistent for standardization in global shipping:

Length: 40 feet
Width: 8 feet
Height: 8 feet 6 inches (standard) or 9 feet 6 inches (high cube).

These external measurements ensure compatibility with cargo ships, trailers, and other transportation modes.

9. Specialized Containers: Open-Top and High Cube Designs

While standard and high cube containers are the most common, specialized containers also exist to meet specific needs:

Open-Top Containers: Feature removable roofs, allowing for the transport of oversized cargo.
Refrigerated Containers: Include temperature control for perishable goods.
Flat Rack Containers: Used for heavy equipment or machinery.

Each type has unique specifications, making them valuable for specialized industries.

10. 40 Foot Shipping Containers in Transportation

Shipping containers are designed for seamless transportation across multiple modes:

Trucks: A 40 foot container with a chassis adds around 4–5 feet to the total height, depending on the trailer.
Trains: Standardized dimensions allow easy stacking and secure transport.
Ships: Containers are loaded into designated slots, ensuring stability during sea freight.

11. FAQs About 40 Foot Shipping Containers

Q: What is the height of a 40 foot container on a truck?

A: A standard 40 foot container on a truck typically reaches a height of 13–14 feet, depending on the chassis.

Q: How many pallets fit in a 40 foot container?

A: A 40 foot container can fit 20–21 standard pallets (48″x40″) or 24–25 Euro pallets (47″x32″).

Q: What is the cubic capacity of a 40 foot container?

A: The cubic capacity of a standard 40 foot container is approximately 67.7 cubic meters (2,390 cubic feet).

Q: What is the door size of a 40 foot container?

A: The door dimensions are approximately:

Width: 7 feet 8 inches (2.34 meters)
Height: 7 feet 5 inches (2.28 meters)

12. Conclusion: Maximizing the Potential of 40 Foot Containers

The 40 foot shipping container is more than just a box for transporting goods; it’s a symbol of innovation, adaptability, and modern engineering. Its standardized dimensions, high capacity, and durable construction make it indispensable in industries ranging from logistics to construction.

Whether you’re shipping goods across the globe, designing a container home, or exploring creative uses for these versatile structures, understanding the 40 foot container dimensions is the first step in unlocking its full potential. With its affordability, sustainability, and versatility, the 40 foot shipping container continues to revolutionize the way we think about transportation and housing.
